Validation - Terminal ballistics

Introduction

This document presents validation tests on terminal ballistics.

Numerical models of experiments are created and evaluated against the experimental results. Experimental data is gathered from several scientific studies reported in literature. Key materials and projectiles used in the models are available as material objects on IMPETUS Market.

Version control

Most of the tests presented in this document are subjected to version control, meaning that the models are run and evaluated prior to release of a new solver. This document is updated in conjunction with new official releases of the software.

Overview of tests

Information regarding projectiles and target materials used in the different validation cases are presented in Table 1

Article Type of projectile(s) Material in target
T. Børvik et al. (2009) (1) Steel cylinders (conical nose) AA5083-H116
J. K. Holmen et al. (2013) 7.62 mm APM2 AA6070
T. Børvik et al. (2011) 7.62 mm APM2 AA6082-T4
T. Børvik et al. (2009) (2) 7.62 mm APM2 Domex Protect 500, Hardox 400,
Weldox 500E and Weldox 700E
S. J. Schraml (2012) Tungsten cylinders
(hemispherical nose)		 RHA (Rolled Homogeneous armor)
J. P Riegel III and
D. Davison (2016)		 Tungsten cylinders RHA
E. Lidén et al. (2007) WHA (Wolfram Heavy Alloy)
cylinders		 SS2541-03
P. Weidemaier et al. (2004) WHA cylinders RHA
P. Lundberg (2004) Steel cylinders SiC (Silicon Carbide)
C. G. Fountzoulas et al. (2009) WC (Wolfram Carbide) ball SiC
L. H. Nguyen et al. (2016) 20 mm FSP (Fragment Simulating projectile) Dyneema HB26
K. Karthikeyan et al. (2013) Steel ball Dyneema HB26
Table 1. The validation cases.

C. G. Fountzoulas et al. (2009)

Simulation of Ballistic Impact of a Tungsten Carbide Sphere on a Confined Silicon Carbide Target

Silicon carbide (SiC-N) cylinders in titanium alloy (Ti-6Al-4V) cups impacted by tungsten carbide (WC) spheres at impact velocities in the range of 50 - 500 m/s are investigated in C. G. Fountzoulas et al. (2009) [1]. The SiC-N cylinders are manufactured by CERCOM, inc. A model of the experiments is created and the simulations are compared to cross-sectional images of the SiC-N cylinders post testing, gathered from the referenced literature.

The diameter and height of the SiC-N cylinders is 25.4 mm and the diameter of the WC spheres is 6.35 mm. The inner diameter of the titanium cups is 24.425 mm while the outer diameter is not stated. A wall thickness of 10.0 mm is assumed.

The material object of SiC-N is used for the silicone carbide. Material properties used for Ti-6Al-4V and WC are displayed in Table 1. Full models (w/o symmetry) are used in the simulations. A fine mesh is required to get crack patterns that resembles the ones seen in the experiments. An image of the model is presented in Figure 1.

Material Density
$[kg/m^3]$		 Young's modulus
$[Gpa]$		 Static yield strength
$[Gpa]$
WC 14470 620 3.5
Ti-6Al-4V 4430 110 -
Table 1. Material properties for the wolfram carbide and the titanium alloy. The titanium alloy is modeled as linear-elastic.
VTB_CGF_2009_fig_2
Figure 1. Cross-sectional side view of the model.

Impact velocities under consideration are 63, 161, 322 and 500 m/s. The final state of the simulations are compared to the cross-section cylinders from the experiment post testing in Figure 2 - 5.

VTB_CGF_2009_fig_3
Figure 2. Comparison between simulation and experiment at impact velocity = 63 m/s.
VTB_CGF_2009_fig_4
Figure 3. Comparison between simulation and experiment at impact velocity = 161 m/s.
VTB_CGF_2009_fig_5
Figure 4. Comparison between simulation and experiment at impact velocity = 322 m/s.
VTB_CGF_2009_fig_6
Figure 5. Comparison between simulation and experiment at impact velocity = 500 m/s.

The model with an initial velocity of 161 m/s is subjected to version control.

References

[1] - C. G. Fountzoulas et al. - Simulation of Ballistic Impact of a Tungsten Carbide Sphere on a Confined Silicon Carbide Target, Army Research Laboratory, 2009.




Tests

This benchmark is associated with 1 tests.

E. Lidén et al. (2007)

Influence of Side-Impacting Dynamic Armour Components on Long Rod Projectiles

LRPs (Long Rod Projectiles) of WHA impacted by steel rods is investigated in E. Lidén (2007) [1]. Seven different configurations with varying rod velocities, location of impact along the projectile, number of impacting rods and spacing between rods are investigated, with details presented in Table 1 and Figure 1. The LRP velocity was 2000 m/s and the angle between the velocity vectors is 120 degrees in all configurations. The diameter of both projectile and rods is 2 mm. The projectile length is 60 mm while the length of the rods are assumed to be 30 mm.

Configuration Number of rods Velocity $V_{rod}$
$[m/s]$		 Distance $D_{s}$
$[mm]$		 Distance $D_{0}$
$[mm]$
1 1 200 - 2 (assumed)
2 1 600 - 5
3 1 200 - 30
4 1 600 - 29
5 3 200 3 1, 20 and 29
6 3 600 3 6, 15 and 24
7 3 600 6.75 1, 21 and 41
Table 1. Penetration depths in experiments and simulations at different impact velocities.
VTB_EL_2007_fig_2
Figure 1. To the left: one steel rod is used in configuration 1-4. To the right: three steel rods are used in configuration 5-7.

Model settings:

  • Third order hexahedrons are used exclusively.
  • LRP modeled with 2000 elements and each rod with 3200 elements, gradually refined towards center, as visible in Figure 2.
  • Rods consist of steel grade SS2531-03, modeled with *MAT_JC with parameters in accordance with Table 2.
  • A deviatoric erosion strain of 3.0 (300%) is used to maintain a reasonable time step size.
  • A friction coefficient of 0.025 (2.5%) is assumed.
VTB_EL_2007_fig_3
Figure 2. Mesh of projectile and rod.
A
$[MPa]$		 B
$[MPa]$		 n
$[-]$		 C
$[-]$		 m
$[m]$		 $T_{melt}$
$[K]$		 $\varepsilon_{0}$
$[1/s]$
750 1150 0.49 0.014 1 1700 1
Table 2. *MAT_JC parameters for steel grade SS2541-03.

Simulations are compared to images from the experiments at different times after impact in Figure 3.

VTB_EL_2007_fig_4
Figure 3. Simulations compared to images from the experiments at different times after impact.

The models of configuration 1 and 2 are subjected to version control.

References

[1] - E. Lidén, O. Andersson, A. Tjernberg, Influence of Side-Impacting Dynamic Armour Components on Long Rod Projectiles, International Symposium on Ballistics, Volume 23, 2007, Pages 1099-1106.




Tests

This benchmark is associated with 2 tests.

J. K. Holmen et al. (2013)

Effects of heat treatment on the ballistic properties of AA6070 aluminium alloy

Perforation experiments with 7.62 mm APM2 projectiles on plates of AA6070 are presented in J. K. Holmen et al. (2013) [1]. A numerical model of the experiments is created to assess the calibrations of AA6070 available as Material objects.

AA6070 plates with dimensions 300 x 300 x 20 mm are fixed at two opposite edges while the other two edges are unconstrained. The target is modeled with the calibrations of AA6070. The 7.62 mm APM2 projectile core is modeled as rigid, while models of brass and lead, which are used in the jacket and tip, are modeled as described in T. Børvik et al. (2009) [2].

Model settings:

  • Third order hexahedrons are used exclusively.
  • Cubic elements with side length of approximately 1.0 mm are used in the impact zone.
  • Quarter symmetry utilized as visible in Figure 1.
  • A deviatoric erosion strain of 3.0 (300%) is used to maintain a reasonable time step size.
  • Two friction coefficients are investigated: 0.05 (5%) and 0.1 (10%).
VTB_JKH_2013_fig_6
Figure 1. Quarter symmetry model of target plate and the 7.62 mm APM2 projectile. The target plate mesh is refined in the impact zone.

Regarding failure mechanism, the following is observed in the experiments:

  • Ductile hole growth is the predominant failure mechanism for lower impact velocities while the degree of fragmentation is increased at higher velocities.
  • Most fragmentation is seen for Temper T6 while no fragmentation is observed for temper O.
  • High impact velocities generate fragmentation of the rear side of the plate while fragmentation of the front side is seen for lower velocities.

Residual velocities from the models are compared to Recht-Ipson curves based on residual velocities found from the experiments. The results are presented in Table 1, Table 2 and Figure 2 - 5. Cross-sectional views of the target plates from simulations are compared to photos from the experiments in Figure 6 - 10.

Templer $V_{0}$
$[m/s]$		 $V_{r,exp}$
$[m/s]$		 $V_{r,sim}$
$[m/s]$		 Error
[%]
O 348 0 140 -
O 486 335 361 7.8
O 624 511 523 2.3
O 762 671 672 0.1
O 900 830 839 1.1
T4 506 0 100 -
T4 605 341 377 10.6
T4 703 498 542 8.8
T4 802 632 671 6.2
T4 900 753 787 4.5
T6 562 0 229 -
T6 646 354 394 11.3
T6 731 504 531 5.4
T6 815 627 653 4.1
T6 900 740 760 2.7
T7 529 0 214 -
T7 622 360 393 9.2
T7 715 515 541 5.0
T7 807 643 668 3.9
T7 900 761 779 2.4
Table 1. Residual velocities from experiment, $v_{r,exp}$ and simulations, $v_{r,sim}$ at different impact velocities, $v_{0}$. Simulation results are with a friction coefficient of 0.05 (5%).
Templer $V_{0}$
$[m/s]$		 $V_{r,exp}$
$[m/s]$		 $V_{r,sim}$
$[m/s]$		 Error
[%]
O 348 0 50 -
O 486 335 338 0.9
O 624 511 514 0.6
O 762 671 668 -0.4
O 900 830 833 0.4
T4 506 0 80 -
T4 605 341 329 -3.5
T4 703 498 515 3.4
T4 802 632 653 3.3
T4 900 753 774 2.8
T6 562 0 151 -
T6 646 354 361 2.0
T6 731 504 502 -0.4
T6 815 627 628 0.2
T6 900 740 742 0.3
T7 529 0 160 -
T7 622 360 360 0
T7 715 515 514 -0.2
T7 807 643 646 0.5
T7 900 761 765 0.5
Table 2. Residual velocities from experiment, $v_{r,exp}$ and simulations, $v_{r,sim}$ at different impact velocities, $v_{0}$. Simulation results are with a friction coefficient of 0.1 (10%).
VTB_JKH_2013_fig_7
Figure 2. Residual velocities from simulations and experiments with temper O.
VTB_JKH_2013_fig_8
Figure 3. Residual velocities from simulations and experiments with temper T4.
VTB_JKH_2013_fig_9
Figure 4. Residual velocities from simulations and experiments with temper T6.
VTB_JKH_2013_fig_10
Figure 5. Residual velocities from simulations and experiments with temper T7.
VTB_JKH_2013_fig_11
Figure 6. Temper O, impact velocity = 377 m/s.
VTB_JKH_2013_fig_12
Figure 7. Temper O, impact velocity = 900 m/s.
VTB_JKH_2013_fig_13
Figure 8. Temper T6, impact velocity = 589 m/s.
VTB_JKH_2013_fig_14
Figure 9. Temper T6, impact velocity = 662 m/s.
VTB_JKH_2013_fig_15
Figure 10. Temper T6, impact velocity = 903 m/s.

One simulation of each temper is subjected to version control.

References

[1] - J. K. Holmen, J. Johnsen, S. Jupp, O.S. Hopperstad, T. Børvik, Effects of heat treatment on the ballistic properties of AA6070 aluminium alloy, International Journal of Impact Engineering, Volume 57, 2013, Pages 119-133.

[2] - T. Børvik, S. Dey, A.H. Clausen, Perforation resistance of five different high-strength steel plates subjected to small-arms projectiles, International Journal of Impact Engineering, Volume 36, 2009, Pages 948-964.




Tests

This benchmark is associated with 4 tests.

J. P. Riegel III and D. Davison (2016)

Consistent constitutive modeling of metallic target penetration using empirical, analytical, and numerical penetration models

Ballistic tests with tungsten alloy projectiles in RHA targets are investigated experimentally by V. Hohler and A. J. Stilp (1991). Experimental results from this investigation are gathered from J. P. Riegel III and D. Davison (2016) [1].

Cylindrical projectiles with length L = 58.0 mm and a diameter D = 5.8 mm impact semi-infinite targets of RHA with impact velocities in the range of 500 - 2100 m/s. The target is modeled as a cylinder with a diameter equal to 20D and a length equal to 3L.

The targets are constructed of three layers in the numerical model. The outermost layer (0.0 - 6.35 mm) is modeled with the calibration of 12.7 mm thick material. The intermediate layer (6.35 - 19.05 mm) with the calibration of 38.1 mm thick material and the innermost layer (19.05 - 174.0 mm) with the calibration of 101.6 mm thick material. The projectile is modeled with the tungsten alloy grade Y925 with the density changed to 17 600 $kg/m^3$.

Model settings:

  • Cubic elements with a side-length of approximately 1.5 mm are used in the impact zone and the projectile.
  • Axi-symmetry is used as displayed in Figure 1.
  • The backside of the target is fixed in the direction of impact.
  • A deviatoric erosion strain of 3.0 (300%) is used to maintain a reasonable time step size.
  • The friction coefficient is set to 0.02 (2%).
VTB_JPR_2016_fig_10
Figure 1. Axi-symmetric model of the RHA target and the tungsten alloy projectile. Different RHA calibrations are applied to different parts of the target.

Penetration depths are presented in Table 1 and Figure 2 together with data from experiments.

Impact velocity
$[m/s]$		 Penetration depth - exp.
$[mm]$		 Penetration depth - sim.
$[mm]$		 Error
[%]
500 2.0 2.0 0.0
1000 20.9 21.9 4.8
1500 52.3 55.4 6.0
2000 74.6 76.1 2.0
Table 1. Penetration depths in experiments and simulations at different impact velocities.
VTB_JPR_2016_fig_11
Figure 2. Penetration depths in experiments and simulations at different impact velocities.

The case with an impact velocity of 1500 m/s is subjected to version control.

References

[1] - J. P. Riegel III and D. Davison, Consistent constitutive modeling of metallic target penetration using empirical, analytical, and numerical penetration models, Defence Technology 12, pages 201-213, 2016.




Tests

This benchmark is associated with 1 tests.

K. Karthikeyan et al. (2013)

The effect of shear strength on the ballistic response of laminated composite plates

Deflection profiles from experiments with Dyneema HB26 plates impacted by steel balls are presented in K. Karthikeyan et al. [1]. A numerical model of the experiments is created and deflection profiles from the simulations are compared to profiles from the experiments.

Target plate dimensions are 150 x 150 x 6 mm and the plate is clamped between two circular steel rings with an inner diameter of 100 mm, outer diameter of 150 mm and a thickness of 6.35 mm. The 8.3 g steel ball has a diameter of 12.7 mm and impacts the target plate at 250 m/s.

Model settings:

  • Investigated layer thicknesses are 1 and 2 mm (cf. 0.25 mm per layer product).
  • One element through the thickness of each layer.
  • Steel ball is modeled as elastic with E = 210 GPa, nu = 0.3 and rho = 7740 $kg/m^3$.
  • Third order hexahedrons are used exclusively.
  • Adhesive properties between layers is defined with *MERGE and *MERGE_FAILURE_COHESIVE.
  • Quarter symmetry is utilized as visible in Figure 1.
  • A deviatoric erosion strain of 3.0 (300%) is used.
  • The friction coefficient is set to 0.025 (2.5%).
VTB_KK_2013_fig_12
Figure 1. Quarter symmetry model of the Dyneema HB26 plate clamped between the two steel rings.

Deflection profiles at different times after impact found from the simulations are compared to profiles from the experiments in Figure 2. The profiles are registered at the following times (smallest to greatest displacements): 23, 47, 71, 95 and 142 $\mu s$.

VTB_KK_2013_fig_13

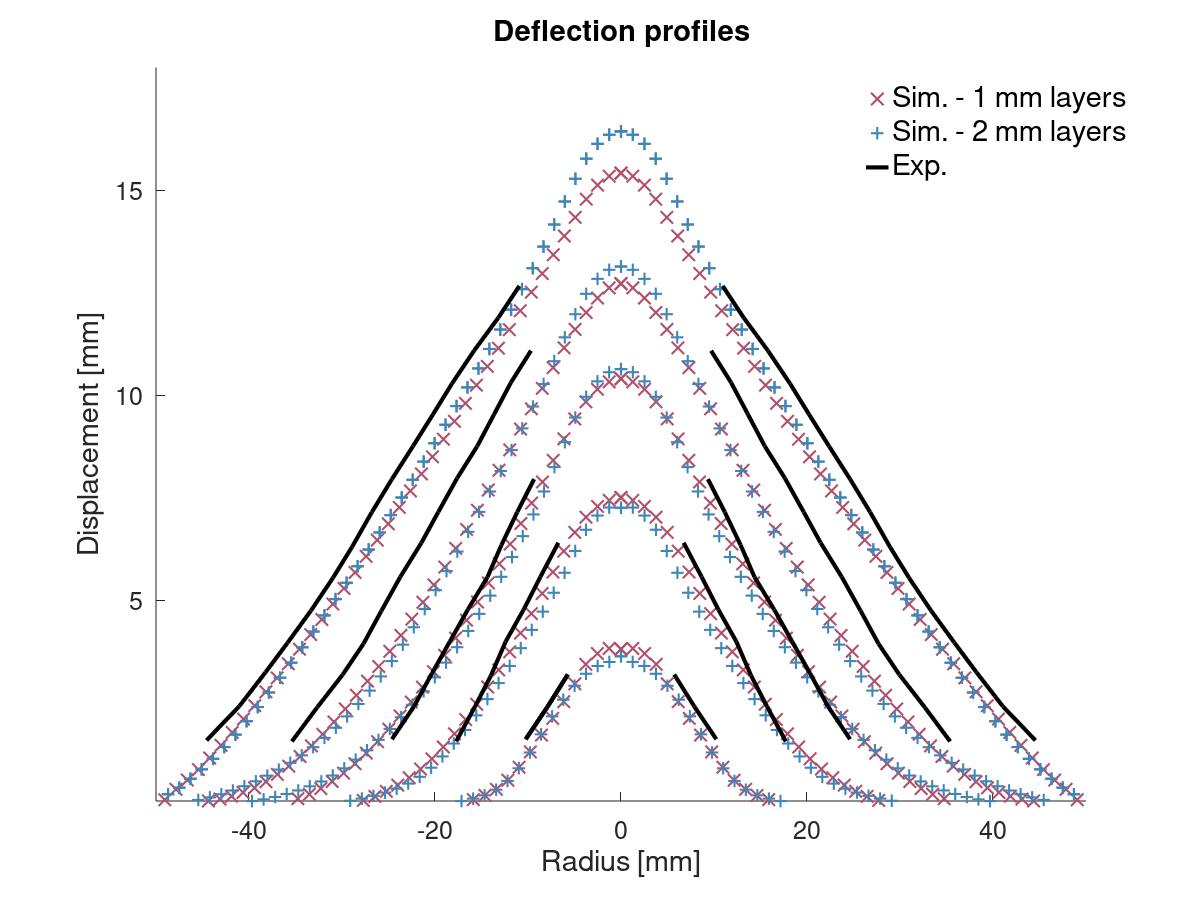

Figure 2. Deflection profiles from simulations compared to profiles from experiment.

The model with 2 mm layers is subjected to version control.

References

[1] - The effect of shear strength on the ballistic response of laminated composite plates, K. Karthikeyan et al. European Journal of Mechanics A/solids, pages 35-53, 2013.




Tests

This benchmark is associated with 1 tests.

L. H. Nguyen et al. (2016)

A methodology for hydrocode analysis of ultra-high molecular weight polyethylene composite under ballistic impact

Residual vs. impact velocity and apex displacement vs. time from ballistic experiments on Dyeema HB26 are presented in L. H. Nguyen et al. (2016) [1]. Square target plates with a side length of 300 mm and a thickness of 10, 20 and 36.2 mm are impacted by a 20 mm FSP (Fragment Simulating Projectile). The material object of Dyneema HB26 is used in the numerical models and the models are evaluated against the experimental results.

Model settings:

  • Investigated layer thicknesses are 1 and 2 mm for each target plate (cf. 0.25 mm per layer product).
  • One element through the thickness of each layer.
  • Second order hexahedrons are used exclusively.
  • Surfaces with a normal in the X- or Y-direction are free in the X- and Y-direction while fixed in the Z-direction.
  • Adhesive properties between layers are defined with *MERGE and *MERGE_FAILURE_COHESIVE.
  • Quarter symmetry is utilized as visible in Figure 1.
  • A deviatoric erosion strain of 3.0 (300%) is used.
  • The friction coefficient is set to 0.025 (2.5%).
VTB_LHN_2016_fig_3
Figure 1. Quarter symmetry model of the 20 mm FSP and the 36.2 mm thick target plate.

Experimental data of the residual vs. impact velocities are available for the 10 and 20 mm target plates. Ballistic limit velocities and apex displacements are available for all plate thicknesses. Comparisons between numerical and experimental residual velocities are presented in Table 1, Table 2 and Figure 2. Ballistic limit velocity, $v_{bl}$, is investigated using impact velocities of $0.9\cdot v_{bl}$ and $1.1\cdot v_{bl}$. Results from these simulations are presented in Table 3 - 5. The comparisons of the apex displacements are presented in Figure 3 - 5.

$v_{i}$
$[m/s]$		 $v_{r,exp}$
$[m/s]$		 Layer thickness = 2 mm
$v_{r,sim}$
$[m/s]$		 Layer thickness = 2 mm
Error
[%]		 Layer thickness = 1 mm
$v_{r,sim}$
$[m/s]$		 Layer thickness = 1 mm
Error
[%]
418 102 224.3 119.9 155.0 52.0
441 263 276.6 5.2 310.8 18.2
464 352 344.4 -2.2 358.4 1.8
643 583 550.5 -5.6 573.9 -1.6
984 952 916.7 -3.7 919.0 -3.5
Table 1. Residual velocities from simulations, $v_{r,sim}$, and experiments, $v_{r,exp}$, at different impact velocities, $v_i$, for the 10 mm target plate.
$v_{i}$
$[m/s]$		 $v_{r,exp}$
$[m/s]$		 Layer thickness = 2 mm
$v_{r,sim}$
$[m/s]$		 Layer thickness = 2 mm
Error
[%]		 Layer thickness = 1 mm
$v_{r,sim}$
$[m/s]$		 Layer thickness = 1 mm
Error
[%]
683 447 456.2 2.1 470.8 5.3
899 737 747.2 1.4 746.8 1.3
1058 866 916.0 5.7 920.5 6.3
Table 2. Residual velocities from simulations, $v_{r,sim}$, and experiments, $v_{r,exp}$, at different impact velocities, $v_i$, for the 20 mm target plate.
VTB_LHN_2016_fig_4
Figure 2. Residual vs. impact velocities for the 10 and 20 mm target plates. Simulations are run with both 1 and 2 mm thick layers.
$v_{bl}$
$[m/s]$		 $v_{i}$
$[m/s]$		 Layer thickness = 2 mm
$v_{r,sim}$
$[m/s]$		 Layer thickness = 1 mm
$v_{r,sim}$
$[m/s]$
394 $0.9 \cdot v_{bl}$ 0.0 0.0
394 $1.1 \cdot v_{bl}$ 290.8 279.2
Table 3. Ballistic limit velocities, $v_{bl}$, found from experiments together with residual velocities from simulations, $v_{r,sim}$, at impact velocities, $v_i = 0.9\cdot v_{bl}$ and $v_i = 1.1\cdot v_{bl}$ for the 10 mm thick plate.
$v_{bl}$
$[m/s]$		 $v_{i}$
$[m/s]$		 Layer thickness = 2 mm
$v_{r,sim}$
$[m/s]$		 Layer thickness = 1 mm
$v_{r,sim}$
$[m/s]$
620 $0.9 \cdot v_{bl}$ 0.0 0.0
620 $1.1 \cdot v_{bl}$ 452.2 468.8
Table 4. Ballistic limit velocities, $v_{bl}$, found from experiments together with residual velocities from simulations, $v_{r,sim}$, at impact velocities, $v_i = 0.9\cdot v_{bl}$ and $v_i = 1.1\cdot v_{bl}$ for the 20 mm thick plate.
$v_{bl}$
$[m/s]$		 $v_{i}$
$[m/s]$		 Layer thickness = 2 mm
$v_{r,sim}$
$[m/s]$		 Layer thickness = 1 mm
$v_{r,sim}$
$[m/s]$
901 $0.9 \cdot v_{bl}$ 0.0 0.0
901 $0.9 \cdot v_{bl}$ 624.2 636.1
Table 5. Ballistic limit velocities, $v_{bl}$, found from experiments together with residual velocities from simulations, $v_{r,sim}$, at impact velocities, $v_i = 0.9\cdot v_{bl}$ and $v_i = 1.1\cdot v_{bl}$ for the 36.2 mm thick plate.
VTB_LHN_2016_fig_5
Figure 3. Apex displacement from simulation and experiment for the 10 mm target plate. The impact velocity is 394 m/s and the model is run with 1 mm layers.
VTB_LHN_2016_fig_6
Figure 4. Apex displacement from simulation and experiment for the 20 mm target plate. The impact velocity is 615 m/s and the model is run with 1 mm layers.
VTB_LHN_2016_fig_7
Figure 5. Apex displacement from simulation and experiment for the 36.2 mm target plate. The impact velocity is 888 m/s and the model is run with 1 mm layers.

Images from the simulation with the 20 mm thick target plate are presented in Figure 6.

VTB_LHN_2016_fig_8
Figure 6. Isometric and side view of the 20 mm target plate modeled with 1 mm layers at initiation and termination.

Two of the simulations are subjected to version control.

References

[1] - A methodology for hydrocode analysis of ultra-high molecular weight polyethylene composite under ballistic impact, L. H. Nguyen et al., Composites: Part A, pages 224-235, 2016.




Tests

This benchmark is associated with 2 tests.

P. Lundberg (2004)

Interface defeat and Penetration: Two Modes of Interaction between Metallic Projectile and Ceramic Targets

Silicon carbide (SiC-N) cylinders confined in steel (Mar 350) cups are impacted by long rod projectiles (LRP) of a wolfram heavy alloy (WHA). Experimental details and results are presented in P. Lundberg (2004) [1].

Two different types of interaction between the LRP and the SiC-target are identified:

  • Interface defeat - radial flow of the LRP on the surface of the target without any significant penetration.
  • Penetration - significant penetration to the target.

A transition velocity, $v_{tr}$ = 1507 $\pm$ 5 m/s is identified in the experiments. Interface defeat is achieved for impact velocities below $v_{tr}$ while penetration occurs for velocities higher than $v_{tr}$.

The diameter and height of the SiC-N cylinders is 20.0 mm. The LRP length is 80.0 mm and the diameter is 2.0 mm. Geometries of the steel cup and copper lid can be found in the referenced literature. A model of WHA grade Y925, which is the grade used in the experiments, is included from the object store together with a model of copper. The steel is modeled in accordance to [3] and the SiC-N model calibrated so far is used. Basic mechanical properties for the WHA, copper and steel is presented in Table 1.

Material Density
$[kg/m^3]$		 Young's modulus
$[GPa]$		 Static yield strength
$[MPa]$
WHA 17700 340 1300
Copper 8520 115 102
Steel 8100 194 2600
Table 1. Material properties for the wolfram heavy alloy, copper and steel.

Full models (w/o symmetry) with QHEX elements were used in the simulations and the simulations are done in two steps. An image of the model is presented in Figure 1.

In the first step, the steel cup with initial temperature T0 is cooled to the ambient temperature (assumed to 293 K) around the SiC-N cylinder, causing a confinement pressure in the SiC-N. Details regarding the shrink-fitting process is not presented in the refererenced literature so two different T0 are investigated: 793 K and 543 K.

In the second step, the LRP is included with an initial velocity v0. Two initial velocities are investigated: 1300 and 1700 m/s.

VTB_PL_2004_fig_7
Figure 1. Cross-sectional side view of the model. Note that only a part of the projectiles entire length is displayed.

The final state of the simulations are presented in Figure 2 - 5.

VTB_PL_2004_fig_8
Figure 2. $T_0$ = 543 K, $v_0$= 1300 m/s.
VTB_PL_2004_fig_9
Figure 3. $T_0$ = 543 K, $v_0$= 1700 m/s.
VTB_PL_2004_fig_10
Figure 4. $T_0$ = 793 K, $v_0$= 1300 m/s.
VTB_PL_2004_fig_11
Figure 5. $T_0$ = 793 K, $v_0$= 1700 m/s.
References

[1] - P. Lundberg - Interface defeat and Penetration: Two Modes of Interaction between Metallic Projectile and Ceramic Targets, Dissertation from Uppsala university, 2004.

P. Weidemaier et al. (2004)

Experimental and Numerical Simulation Analysis of the Impact Process of Structured KE Penetrators onto Semi-infinite and Oblique Plate Targets

KE projectiles of WHA grade Y925 impacting semi-infinite targets of RHA (Rolled Homogeneous Armor) are experimentally investigated in P. Weidemaier et al. (2004) [1]. Projectiles with three different shapes are investigated: cylindrical, tapered conical and broadened conical. Length-to-diameter ratio equals 20 for the cylindrical projectile. The minimum diameter of the tapered and broadened projectiles is 5 mm while the maximum diameter is 8 mm. Illustrations of the different projectiles are presented in Figure 1. The mass of each projectile is 75 g and the impact velocity is 1600 m/s.

VTB_PW_2004_fig_8
Figure 1. Illustration of the different projectile shapes.

Model settings:

  • Third order elements are used exclusively.
  • Axisymmetry is utilized and only 10$^\circ$ slice is modeled, as seen in Figure 2.
  • Projectile modeled with 160 elements and target with 1320 elements.
  • A deviatoric erosion strain of 3.0 (300%) is used to maintain a reasonable time step size.
  • A friction coefficient of 0.025 (2.5%) is assumed.
VTB_PW_2004_fig_9
Figure 2. Axisymmetric model of WHA projectile impacting RHA target.

Penetration depths from simulations are compared to experimental values in Table 1.

Projectile Penetration depth - exp.
$[mm]$		 Penetration depth - sim.
$[mm]$		 Error
[%]
Cylindrical 117.2 110.8 5.8
Tapered 122.1 115.9 5.3
Broadened 109.6 103.2 6.2
Table 1. Comparison of penetration depths between simulations and experiments.

The model with the cylindrical projectile is subjected to version control.

References

[1] - P. Weidemaier, K. Weber, N. Heider, Experimental and Numerical Simulation Analysis of the Impact Process of Structured KE Penetrators onto Semi-infinite and Oblique Plate Targets, Ernst-Mach Institute, 2004.




Tests

This benchmark is associated with 1 tests.

S. J. Schraml (2012)

Constitutive model parameter study for armor steel and tungsten alloys

Penetration depths in blocks of RHA impacted by tungsten projectiles are investigated experimentally in S. J. Schraml (2012) [1]. A numerical model of the experiments is created to evaluate the three calibrations of RHA available in this object.

Investigated projectile length-to-diameter ratio in the experiments are 5, 10, 15 and 30. The validation work is limited to a length-to-diameter of 10. Investigated impact velocities for this setup is in the range of 1050-1750 m/s. The approximately 80 mm long projectiles with a hemispherical nose impacts RHA cubes with a side-length of 152.0 mm.

The RHA blocks are constructed of three layers in the numerical model. The outermost layer (0.0 - 6.35 mm) is modeled with the calibration of 12.7 mm thick material. The intermediate layer (6.35 - 19.05 mm) is modeled with the calibration of 38.1 mm thick material and the innermost layer (19.05 - 152.4 mm) with the calibration of 101.6 mm thick material. The projectile is modeled with the tungsten alloy grade Y925 which has a density of 17 700 $kg/m^3$ and is available as a material object.

Model settings:

  • Hexahedron elements are used exclusively.
  • Cubic elements with a side-length of 1.0 mm are used in the impact zone and the projectile.
  • The depth of the mesh refinement in the target plate is set to 125% the penetration depth found from the experiments.
  • Quarter symmetry is utilized as visible in Figure 1.
  • The backside of the target is fixed in the direction of impact.
  • A deviatoric erosion strain of 3.0 (300%) is used to maintain a reasonable time step size.
  • The friction coefficient is set to 0.02 (2%).
VTB_SJS_2012_fig_8
Figure 1. Quarter symmetry model of the RHA target and the tungsten alloy projectile. Different RHA calibrations are applied to different parts of the target.

Penetration depths are presented in Table 1 and Figure 2 together with data from experiments.

Impact velocity
$[m/s]$		 Penetration depth - exp.
$[mm]$		 Penetration depth - sim.
$[mm]$		 Error
[%]
1078 35.1 38.2 8.8
1102 37.5 40.4 7.7
1286 55.5 58.3 5.0
1298 54.9 59.0 7.5
1499 73.4 78.3 6.7
1528 75.8 81.2 7.1
1697 87.5 94.2 7.7
1718 88.3 95.4 8.0
Table 1. Penetration depths in experiments and simulations at different impact velocities.
VTB_SJS_2012_fig_9
Figure 2. Penetration depths in experiments and simulations at different impact velocities.

The case with an impact velocity of 1499 m/s is subjected to version control.

References

[1] - S. J. Schraml, Constitutive model parameter study for armor steel and tungsten alloys, Army research laboratory, 2012.




Tests

This benchmark is associated with 1 tests.

T. Børvik et al. (2009) (1)

Perforation of AA5083-H116 aluminium plates with conical-nose steel projectiles

Perforation experiments with conical-nose steel projectiles on plates of AA5083-H116 are presented in T. Børvik et al. (2009) [1]. A numerical model of the experiments is created to assess the calibrations of AA5083-H116 available as Material objects.

AA5083-H116 plates of different thickness are clamped in a circular frame with an inner diameter of 500 mm. A conical-nose steel projectile with length 98 mm and diameter 20 mm impacts the target plates at different velocities and the residual velocity in the case of perforation is registered. All calibrations/thicknesses are investigated numerically and compared to experimental results. The material in the projectile is modeled in accordance to the referenced literature.

Model settings:

  • Third order elements in target plate and second order elements in projectile since small deformations are expected in the projectile.
  • Side length of elements in the impact zone is 2.0 mm.
  • Axisymmetry is utilized. A 10% slice is modeled as visible in Figure 1.
  • A deviatoric erosion strain of 3.0 (300%) is used.
  • A friction coefficient of 0.01 (1%) is assumed.
  • No failure criterion is used.
VTB_TB_2009_fig_6
Figure 1. Axisymmetry is utilized. A finer mesh is used in the impact zone. Symmetry conditions are applied to surfaces with a normal in the tangential direction. The surface with normal in the radial direction is fixed in XYZ.

The failure mechanism seen in the experiments is ductile hole growth, which is also the case in the simulations due to the absence of failure criterion. Greatly distorted elements with significantly reduced shear resistance are however eroded.

Residual velocities from the models are compared to Recht-Ipson curves based on residual velocities found from the experiments. The results are presented in Table 1 and Figure 2.

Thickness
$[mm]$		 $v_{0}$
$[m/s]$		 $v_{r,exp}$
$[m/s]$		 $v_{r,sim}$
$[m/s]$		 Error
[%]
15 210 0 0 0
15 220 40 0 -
15 260 144 138 -4.2
15 305 215 213 -0.9
15 350 275 275 0
20 245 0 0 0
20 255 66 58 3.6
20 283 140 142 5.2
20 317 201 201 2.0
20 350 251 251 1.6
25 250 0 0 0
25 260 42 0 -
25 287 129 110 -14.7
25 319 190 179 -5.7
25 350 239 230 -3.8
30 305 0 0 0
30 315 59 55 -6.8
30 323 93 94 1.1
30 337 133 135 1.5
30 350 164 166 1.2
Table 1. Residual velocities from experiment, $v_{r,exp}$, and simulations, $v_{r,sim}$, at different impact velocities, $v_{0}$.
VTB_TB_2009_fig_7
Figure 2. Residual velocities from the simulations are compared to a Recht-Ipson curve based on residual velocities from the experiments.

One simulation of each thickness/calibration is subjected to version control.

References

[1] - T. Børvik, M. J. Forrestal, O. S. Hopperstad, T. L. Warren, M. Langseth, Perforation of AA5083-H116 aluminium plates with conical-nose steel projectiles - Calculations, International Journal of Impact Engineering, Volume 36, 2009, Pages 426-437.




Tests

This benchmark is associated with 4 tests.

T. Børvik et al. (2009) (2)

Perforation resistance of five different high-strength steel plates subjected to small-arms projectiles

The perforation resistance of five different high-strength steel plates against 7.62 mm APM2 projectiles is investigated in T. Børvik et al. (2009) [1]. The calibrations of Domex Protect 500, Hardox 400, Weldox 500E and Weldox 700E are added as material objects while the calibration of Armox 560T is omitted.

The target consists of two plates of the same steel with dimensions 300 x 300 x 6 mm, yielding a target thickness of 12 mm. Two opposite sides of the target are clamped while the other two sides are unconstrained. The calibrations of Domex Protect 500, Hardox 400, Weldox 500E and Weldox 700E are used in the target plate. The 7.62 mm APM2 projectile core is modeled as rigid, while models of brass and lead, which are used in the jacket and tip, are modeled in accordance to the referenced literature.

Model settings:

  • Third order hexahedrons are used exclusively.
  • Cubic elements with a side length of 1.0 mm are used in the impact zone.
  • Quarter symmetry is utilized as visible in Figure 1.
  • A deviatoric erosion strain of 3.0 (300%) is used to maintain a reasonable time step size.
VTB_TB_2009_2_fig_6
Figure 1. Quarter symmetry model of target plate and the 7.62 mm APM2 projectile. The target plate mesh is refined in the impact zone.

Five different impact velocities in the range of 600 - 1200 m/s are investigated numerically. Residual velocities from the model are compared to a Recht-Ipson curve based on residual velocities found in the experiments. Results are presented in Table 1 and Figure 2 - 5.

Material in target plate $v_{0}$
$[m/s]$		 $v_{r,exp}$
$[m/s]$		 $v_{r,sim}$
$[m/s]$		 Error
[%]
Domex Protect 500 837
897
957
1080
1200		 0
353
499
719
894		 167
350
473
694
862		 0
-0.8
-5.2
-3.5
-3.6
Hardox 400 742
818
893
1049
1200		 0
339
491
734
936		 0
330
491
731
936		 0
-2.7
0.0
-0.4
0.0
Weldox 500E 623
718
813
1010
1200		 0
390
559
830
1057		 152
407
551
812
1038		 -
4.4
-1.4
-2.2
-1.8
Weldox 700E 675
762
848
1027
1200		 0
422
585
843
1058		 210
443
577
815
1019		 -
5.0
-1.4
-3.3
-3.7
Table 1. Residual velocities from experiment, $v_{r,exp}$, and simulations, $v_{r,sim}$, at different impact velocities, $v_{0}$.
VTB_TB_2009_2_fig_7
Figure 2. Residual velocities from the simulations and experiments with Domex Protect 500.
VTB_TB_2009_2_fig_8
Figure 3. Residual velocities from the simulations and experiments with Hardox 400.
VTB_TB_2009_2_fig_9
Figure 4. Residual velocities from the simulations and experiments with Weldox 500E.
VTB_TB_2009_2_fig_10
Figure 5. Residual velocities from the simulations and experiments with Weldox 700E.

One simulation of each material is subjected to version control.

References

[1] - T. Børvik, S. Dey, A.H. Clausen, Perforation resistance of five different high-strength steel plates subjected to small-arms projectiles, International Journal of Impact Engineering, Volume 36, 2009, Pages 948-964.




Tests

This benchmark is associated with 4 tests.

T. Børvik et al. (2011)

Normal and oblique impact of small arms bullets on AA6082-T4 aluminium protective plates

Ballistic tests with target plates of AA6082-T4 impacted by 7.62 mm APM2 projectiles at different obliquity are presented in T. Børvik et al. (2011) [1]. A numerical model of the experiments is created to assess the calibrations of AA6082-T4 available in this material object.

Target plates with dimensions 300 x 300 x 20 mm are fixed with two opposite edges in a rotatable rig. The three calibrations of AA6082-T4 are used in the target plate to investigate the effects of anisotropy. The 7.62 mm APM2 projectile core is modeled as rigid, while models of brass and lead, which are used in the jacket and tip, are modeled in accordance to the referenced literature.

Investigated angles of obliquity are 0, 15, 30, 45 and 60$^\circ$. The impact velocity was 830 $\pm$ 20 m/s in all cases and five to six tests were done for each obliquity. Residual velocities were registered in cases resulting in compete penetration.

Model settings:

  • In-plane dimensions of the target plates are reduced to 50 - 135 x 50 mm in the model, depending on obliquity investigated.
  • The edges of the target plate are fixed in the model.
  • Third order hexahedrons are used exclusively.
  • Cubic elements with a side length of 1.0 mm are used in the impact zone.
  • Half symmetry is utilized as visible in Figure 1.
  • A deviatoric erosion strain of 3.0 (300%) is used to maintain a reasonable time step size.
  • A friction coefficient of 0.02 (2%) is assumed.
VTB_TB_2011_fig_4
Figure 1. Half symmetry models of target plate and the 7.62 mm APM2 projectile. The target plates are refined in the impact zone. To the left: normal impact (0$^\circ$ obliquity). To the right: impact at 60$^\circ$ obliquity.

Residual velocities from the simulations are compared to a curve fitted to the residual velocities found from the experiments in Table 1 - 3 and Figure 2. The uncertainty of the curve increases with the obliquity since the spread in experimental data increased with the angle of obliquity. Details regarding the curve are presented in the referenced literature.

Obliquity
[°]		 $V_{r,exp}$
$[m/s]$		 $V_{r,sim}$
$[m/s]$		 Error
[%]
0 720 719 -0.1
15 720 708 -1.7
30 709 679 -4.2
45 592 595 0.5
60 0 0 0.0
Table 1. Residual velocities from experiments, $v_{r,exp}$, and simulations, $v_{r,sim}$, at different obliquity. Simulations are with the 0$^\circ$-calibration of AA6082-T4.
Obliquity
[°]		 $V_{r,exp}$
$[m/s]$		 $V_{r,sim}$
$[m/s]$		 Error
[%]
0 720 731 1.5
15 720 724 0.6
30 709 698 -1.6
45 592 636 7.4
60 0 0 0.0
Table 2. Residual velocities from experiments, $v_{r,exp}$, and simulations, $v_{r,sim}$, at different obliquity. Simulations are with the 45$^\circ$-calibration of AA6082-T4.
Obliquity
[°]		 $V_{r,exp}$
$[m/s]$		 $V_{r,sim}$
$[m/s]$		 Error
[%]
0 720 726 0.8
15 720 718 -0.3
30 709 697 -1.7
45 592 621 4.9
60 0 0 0.0
Table 3. Residual velocities from experiments, $v_{r,exp}$, and simulations, $v_{r,sim}$, at different obliquity. Simulations are with the 90$^\circ$-calibration of AA6082-T4.
VTB_TB_2011_fig_5
Figure 2. Residual velocities from experiments and simulations at different obliquity.

Cross-sectional views of the target plates from simulations with the 0$^\circ$-calibration are compared to photos from the experiment in Figure 3.

VTB_TB_2011_fig_6
Figure 3. Cross-sectional view of the target plates from experiments and simulations. Obliquity from top to bottom: 0, 15, 30, 45 and 60$^\circ$.

In the experiments, the projectile gets embedded in the target plate at 60$^\circ$ obliquity while ricochet is observed in the simulation. An additional simulation was run with an obliquity of 58$^\circ$ and a better resemblance to the experiment is achieved, as visible in Figure 4.

VTB_TB_2011_fig_7
Figure 4. A better resemblance to the experiment was achieved by reducing the obliquity to 58$^\circ$ in the simulation.

The simulations with 30$^\circ$ obliquity are subjected to version control.

References

[1] - T. Børvik, L. Olovsson, S. Dey, M. Langseth, Normal and oblique impact of small arms bullets on AA6082-T4 aluminium protective plates, International Journal of Impact Engineering, Volume 38, 2011, Pages 577-589.




Tests

This benchmark is associated with 12 tests.
